인디케이터[컨트롤러, Pine-View] |
|
▣ 인디케이터[컨트롤러, Pine-View]
- Multi input system(Input signal : T/C,RTD,DC mV, DC mA)
- The accuracy of DC type is F.S.0.2% full sacale.
- Display : LED 5digits
- All meters have sensor compensation function built in.
- Measurement value Hold function.
- 16 bit A/D Converter.
- Dead band setting function.
- Output Signal ( Option ) : Relay (Max 4P),4-20mA,RS-232/422/485
(PINE VIEW,pine view)
|
|
|
|
MODEL |
Pine-View |
Input |
T/C(B,R,S,K,E,J,T,N-Type) |
RTD(DIN PT100Ω/JIS PT100Ω) |
DC±50.0mV, DC±5.0V |
DC±20.0mA(4~20mA) |
Sampling Time |
mV, V, mA-100msec |
T/C, RTD-200msec |
Input Resistance |
Volt type : 400 KΩ |
mA type : 250 KΩ |
Other : 1 MΩ |
NMRR/CMRR |
50dB 이상 / 140dB 이상 |
Isolation Resistance |
100 MΩ(Based on DC 500V) |
Isolation Voltage |
AC 200V 50/60Hz for 60 seconds |
Working Temp. |
-5 ~ 60 ℃ |

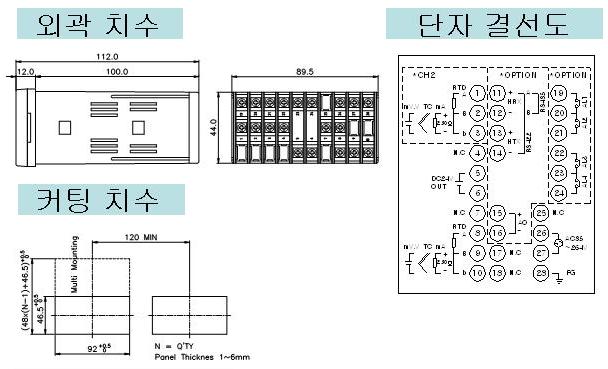

Size |
96(W)*100(D)*48(H) mm |
Display |
7 segments LED |
Relay Output |
Relay 2P(AC 250V/5A, DC 30V/5A) |
Power |
AC 85 ~ 264V ±10%(50/60Hz) |
DC 18 ~ 30V(Order made) |
|
|
|
|
_D.JPG) |
|
|
|
|
|
|
|
|
|
|
|
|
|
