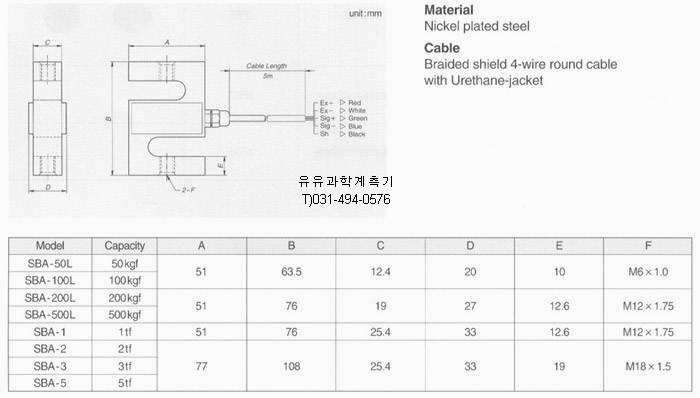

로드셀[SBA] |
|
- OIML C3 approved(OIML R60)
- Compatible with other sources
- Protection class IP65
OPTION
- OIML C3 approved (sba)
|
|
|
|
- Max. capacity .............................. 50,100,200,500kgf, 1tf,2,3,5tf
- Rated output ................................ 3.0+-0.3mV/V
- Zero balance ................................ 0+-0.03mV/V
- Combined error ............................ 0.02%R.O.
- Repeatability ................................ 0.01%R.O.
- Creep for 30min ............................ 0.017%R.O.
- Temperature ceffect on
..Zero Value .................................. 0.014%R.O./10'C
..Output Value ................................ 0.011%R.O./10'C
- Excitation
..Recommended ............................. 10V
..Maximum .................................... 15V
- Resistance
..Input ........................................... 400+-25(ohm)
..Output .......................................... 350+-3.5(ohm)
- Compensated temperature range .... -10 to +40'C
- Operating temperature range .......... -30 to +80'C
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
)
