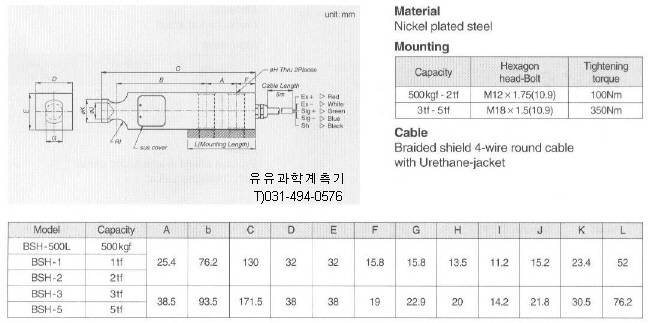

·Îµå¼¿[BSH]

- Harmmer head shear beam
- Link beam application
- Protection class IP65
(bsh)



- Max. capacity .............................. 500kgf, 1tf,2,3,5tf
- Rated output ................................ 3.0+-0.0075mV/V
- Zero balance ................................ 0+-0.03mV/V
- Combined error ............................ 0.03%R.O.
- Repeatability ................................ 0.01%R.O.
- Creep for 30min ............................ 0.03%R.O.
- Temperature ceffect on
..Zero Value .................................. 0.028%R.O./10'C
..Output Value ................................ 0.015%R.O./10'C
- Excitation
..Recommended ............................. 10V
..Maximum .................................... 15V
- Resistance
..Input ........................................... 350+-3.5(ohm)
..Output .......................................... 350+-3.5(ohm)
- Compensated temperature range .... -10 to +40'C
- Operating temperature range .......... -30 to +80'C
