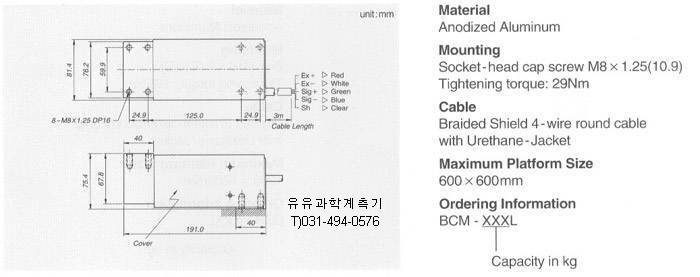

·Îµå¼¿[BCM]

- OIML C3 approved(OIML R60)
- NTEP III 5,000S approved(Handbook 44)
- Off center compensated(OIML R76)
- Protection class IP65

OPTIONS
- OIML C3 approved(C3)
- NTEP III 5,000S approved(A5)
- 6-wires connetion (bcm)



- Max. capacity .............................. 50,75,100,150,200,300,500kgf
- Rated output ................................ 2.0+-0.2mV/V
- Zero balance ................................ 0+-0.1mV/V
- Combined error ............................ 0.02%R.O.
- Repeatability ................................ 0.01%R.O.
- Creep for 30min ............................ 0.017%R.O.
- Temperature ceffect on
..Zero Value .................................. 0.014%R.O./10'C
..Output Value ................................ 0.011%R.O./10'C
- Excitation
..Recommended ............................. 10V
..Maximum .................................... 15V
- Resistance
..Input ........................................... 400+-20(ohm)
..Output .......................................... 350+-3.5(ohm)
- Compensated temperature range .... -10 to +40'C
- Operating temperature range .......... -20 to +70'C
