로드셀[BCL60Kg_200Kg]

▣ 로드셀[BCL 60Kg~200Kg]

BCL Single point load cell, 60kgf - 200kgf

⊙FEATURES
- Low cost Low-profile Off center compensated Protection class IP65

⊙Material
- Anodized Aluminum

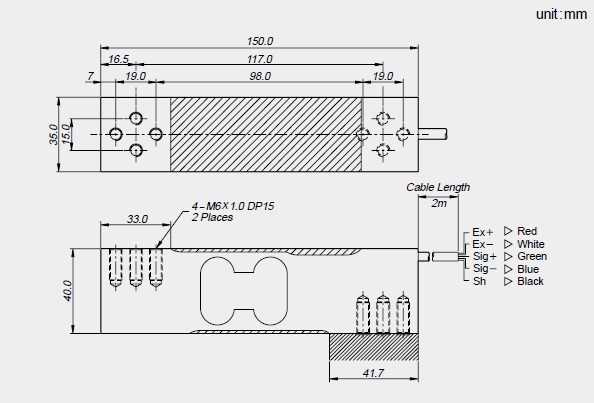

⊙Mounting
- Socket-head cap screw M6 1.0(10.9)
- Tightening torque: 14Nm

⊙Cable
- Braided Shield 4-wire round cable
- with PVC-Jacket

⊙Maximum Platform Size
- 400 x 400mm

⊙Ordering Information
- BCL - XXXL
(BCL,bcl)
