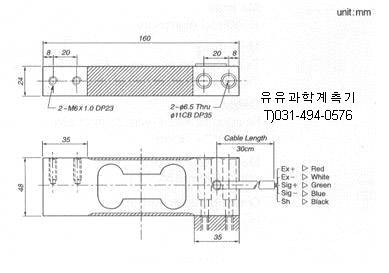

로드셀[BC]

- Low cost
- Off center compensated
- Protection class IP65
(bc)



- Max. capacity .............................. 3, 5,15, 30kgf
- Rated output ................................ 3~5kgf(1.0mV/V)/15~30kgf(1.2mV/V)
- Zero balance ................................ 0+-0.06mV/V
- Combined error ............................ 0.03%R.O.
- Repeatability ................................ 0.01%R.O.
- Creep for 30min ............................ 0.03%R.O.
- Temperature ceffect on
..Zero Value .................................. 0.028%R.O./10'C
..Output Value ................................ 0.015%R.O./10'C
- Excitation
..Recommended ............................. 10V
..Maximum .................................... 15V
- Resistance
..Input ........................................... 420+-20(ohm)
..Output .......................................... 350+-3.5(ohm)
- Compensated temperature range .... -10 to +40'C
- Operating temperature range .......... -20 to +70'C
